Structure of Electric Self-Propelled Scissor Lift Platforms

April 24th, 2025

Structure of Electric Self-Propelled Scissor Lift Platforms

Electric self-propelled scissor lift platforms combine electric propulsion with a scissor-type lifting mechanism, offering autonomous mobility for warehousing, logistics, construction, and industrial tasks. Below is an updated and detailed breakdown of their structure:


1. Chassis and Drive System

  • Chassis Frame:     High-strength welded steel or aluminum alloy for durability, corrosion resistance, and load-bearing capacity (up to 500–2000 kg).

  • Drive Wheels:       Powered by brushless DC motors (24V/48V) with planetary gear reducers for efficiency. Non-marking tires ensure indoor compatibility.

  • Steering System:  Electro-hydraulic steering or differential drive (via independent wheel speed control). Four-wheel steering available in advanced models.

  • Braking System:   Regenerative electromagnetic brakes for energy efficiency, supplemented by mechanical parking brakes for safety on slopes.


2. Scissor Lift Mechanism

  • Scissor Arms:           Multi-layered, high-tensile steel or lightweight alloy arms, pivot-hinged for vertical extension. Lift heights range from 3–20 meters, with 4–8 arm sets.

  • Lift Drive Components:

      Electric Actuators:    High-torque motors (1–5 kW) drive lead screws or gearboxes for arm extension.

      Ball Screw Systems:  Precision screws with low-friction nuts ensure smooth, accurate height adjustments.

      Chain/Belt Drives:    Reinforced chains or synchronous belts synchronize arm movement, reducing wear.

  • Guidance Systems: Linear rails or low-friction sliding blocks minimize lateral sway, ensuring stability at full extension.


  • 3. Work Platform

  • Guardrails:               Foldable or fixed, ≥1.1m high, with toeboards to secure tools and prevent falls.

  • Anti-Slip Deck:        Diamond-patterned steel or anodized aluminum, with drainage for wet environments.

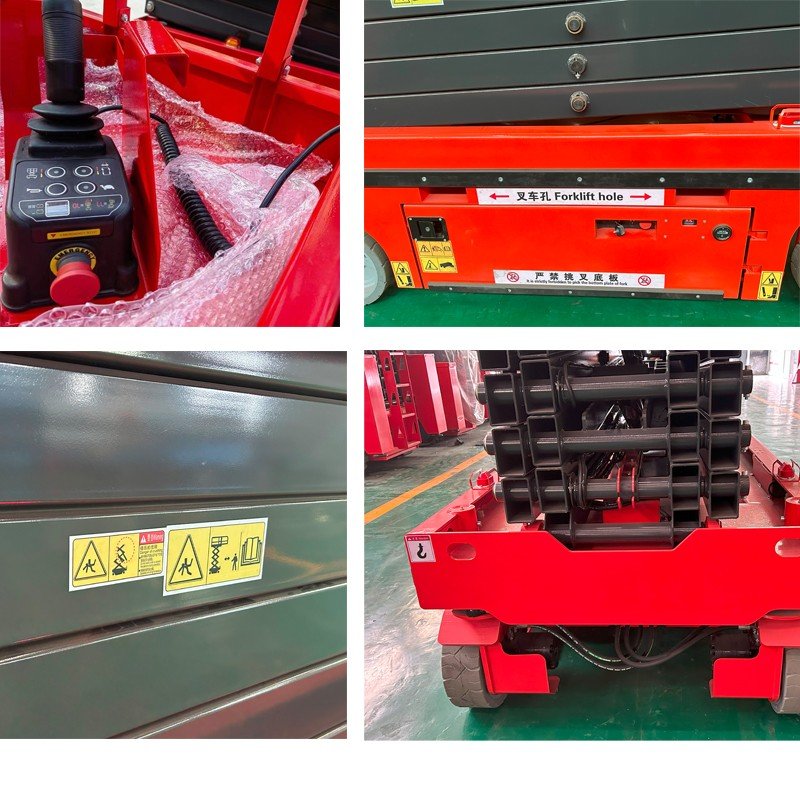

  • Control Panel:         Ergonomic joystick and buttons for lift, movement, and diagnostics. Touchscreen displays show real-time data (height, battery, faults).

  • Optional Features:  Extendable deck (up to 1.5m), AC/DC power outlets, pneumatic/hydraulic tool interfaces, and foldable gates for easy access.


4. Safety Systems

  •  Fall Prevention:            Auto-engaging mechanical locks or hydraulic check valves prevent platform descent during power loss.

  • Overload Protection:    Load cells or pressure sensors halt operation if capacity (e.g., 300–1000 kg) is exceeded.

  • Tilt Protection:              Gyroscopic inclinometers (accuracy ±0.5°) trigger alarms and lock movement if tilt exceeds 2–5°.

  • Emergency Stop:           Dual E-stop buttons (platform and chassis) for immediate shutdown.

  • Anti-Collision Sensors: Ultrasonic or LIDAR sensors detect obstacles, triggering automatic slowdown or stop within 0.5–2m.


5. Electrical Control System

  • Power Source:     Lithium-ion batteries (48V, 100–400 Ah) for 6–12 hours of operation, with fast charging (2–4 hours). Lead-acid options for cost-sensitive applications.

  • Controller:           Advanced PLC or 32-bit microcontroller manages motor coordination, sensor inputs, and fault diagnostics.

  • Interface:             Multilingual touchscreen or LED panels display battery status, lift height, error codes, and maintenance alerts.

  • Sensors:               Limit switches for max/min height detection.

                                   Pressure sensors for load monitoring.

                                   Encoders for precise height and speed feedback.


6. Optional Features

  • Automatic Leveling:               Hydraulic outriggers or gyro-stabilized chassis adjust for slopes up to 10°.

  • Wireless Remote Control:      Bluetooth-enabled remotes for 50m range operation.

  • Extendable Platform:             Motorized extension adds 1–2m of workspace.

  • Lighting Systems:                   High-lumen LED floodlights (5000–10000 lumens) for low-visibility conditions.

  • Environmental Adaptations: IP65-rated components for outdoor use, or cold-storage compatibility (-20°C).
